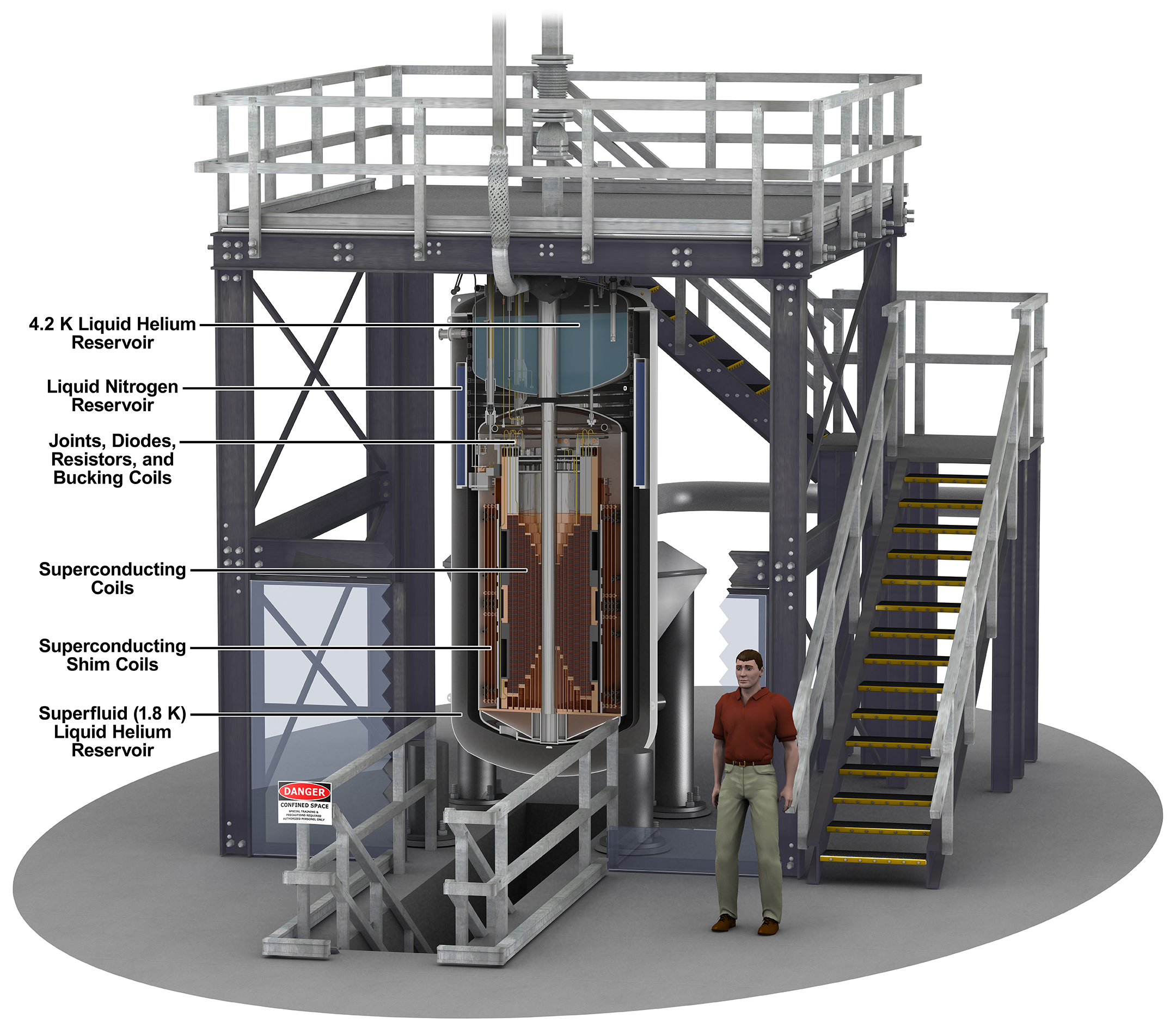

900 MHz 105 mm NMR & MRI/S system

• RRI 64 , 64-mm ID (triple axis 60 G/cm)
• RRI 60, 60-mm ID (triple axis peak 150 G/cm)
• Bruker Mini 0.75, 57-mm ID (triple axis 42 G/cm)
• Bruker Micro 2.5, 40-mm ID (triple axis 150 G/cm)
• Bruker Micro 5, 18-mm ID (triple axis 300 G/cm)
• Bruker Diff30,18-mm ID (single axis Z gradient, 1800 G/cm)

Solids:

• 900 MHz Low-E 3.2 mm MAS 1H–X–Y probe (NHMFL #42)
• 900 MHz Low-E static 1H–X probe (NHMFL #25) with interchangeable sample coils
• 900 MHz 3.2 mm MAS 1H–X low temperature materials probe (NHMFL #24)

High resolution solution NMR:

• 900 MHz 5 mm 1H{13C,15N} solution PFG probe (Bruker Z8682)

MRI

Probe frames:

• 900 MHz MRI probe for in-vivo imaging of rats with 2-RF channel 1H and 1H-X head coils(NHMFL #35)
• 900 MHz MRI probe for in-vivo imaging of rats/mice with 3-RF channel 1H and 1H-X head coils(NHMFL #39)
• 900 MHz Bruker Micro 2.5 probe for ex vivo and in vitro MRI for Proton studies (Bruker #H13398)
• 900 MHz Bruker Micro 5 probe for ex vivo, in vitro and Battery MRI for Proton and Lithium studies(Bruker #Z143507)

Probe heads for NHMFL #35 and #39:

SR- Sliding ring; BC- Birdcage coil; SC- Saddle coil; AG- Alderman Grant; LGR- Loop Gap Resonator; LP- Low Pass; PH1- PEEK former; PH2- G10 Former;

Proton/Fluorine coils:

• PH1 - 33 mm - ¹H (900 MHz) or ¹⁹F (846.921 MHz) BC
• PH1 - 33 mm - ¹H (900 MHz) Quad BC
• PH2 - 33 mm - ¹H (900 MHz) SR BC
• PH2 - 33 mm - ¹H (900 MHz) Quad half SC
• PH2 - 33 mm - ¹H (900 MHz) LP BC

Lithium coils:

• PH2 - 12 mm - ⁷Li (349.805 MHz) LGR

Carbon coils:

• PH2 - 33 mm - ¹H (900MHz) SR BC -¹³C (226.325 MHz) BC

Oxygen coils:

• PH2 - 33 mm - ¹H (900MHz) BC In -¹⁷O (122.019 MHz) SC

Sodium coils:

• PH1 - 33 mm - ²³Na (238.088 MHz) BC
• PH1 - 33 mm - ¹H (900 MHz) SR BC -²³Na (238.088 MHz) BC
• PH2 - 33 mm - ¹H (900 MHz) SR BC -²³Na (238.088 MHz) BC

Phosphorus coils:

• PH1 - 33 mm - ¹H (900 MHz) BC -³¹P (364.359 MHz) BC
• PH2 - 33 mm - ¹H (900 MHz) BC-³¹P (364.359 MHz) SC In
• PH2 - 33 mm - ¹H (900MHz) BC In -³¹P (364.359 MHz) SC
• PH2 - 33 mm - ³¹P (364.359 MHz) SC

Chlorine coils:

• PH1 - 33 mm - ³⁵Cl (88.189 MHz) BC
• PH2 - 33 mm - ³⁵Cl (88.189 MHz) Quad BC

Potassium coils

• PH2 - 33 mm - ³⁹K (42.003MHz) AG

Probe heads for Bruker Micro 2.5 Probe:

• Bruker - 0.8 mm - 1H (900 MHz) -23Na (238.088 MHz) Solenoid
• Bruker- 5 mm - 1H (900 MHz) BC
• Bruker- 10 mm - 1H (900 MHz) BC

Probe heads for Bruker Micro 5 Probe:

• Bruker - 10 mm - 1H (900 MHz)- Double SC
• Bruker - 10 mm - 7Li (349.805 MHz)- Double SC
• Bruker - 10 mm - 6Li (132.457 MHz)- Double SC

Solid-State

• Aligned Membrane Protein NMR
• Biological Solids MAS NMR
• Low Temperature MAS NMR
• Quadrupolar and Low Gamma NMR

MRI

• Energy & Materials MRI
• In Vivo MRI
• Low-gamma / Quadrapolar MRI
• Multinuclear (H and X-nuclei) MRS

Diffusion
